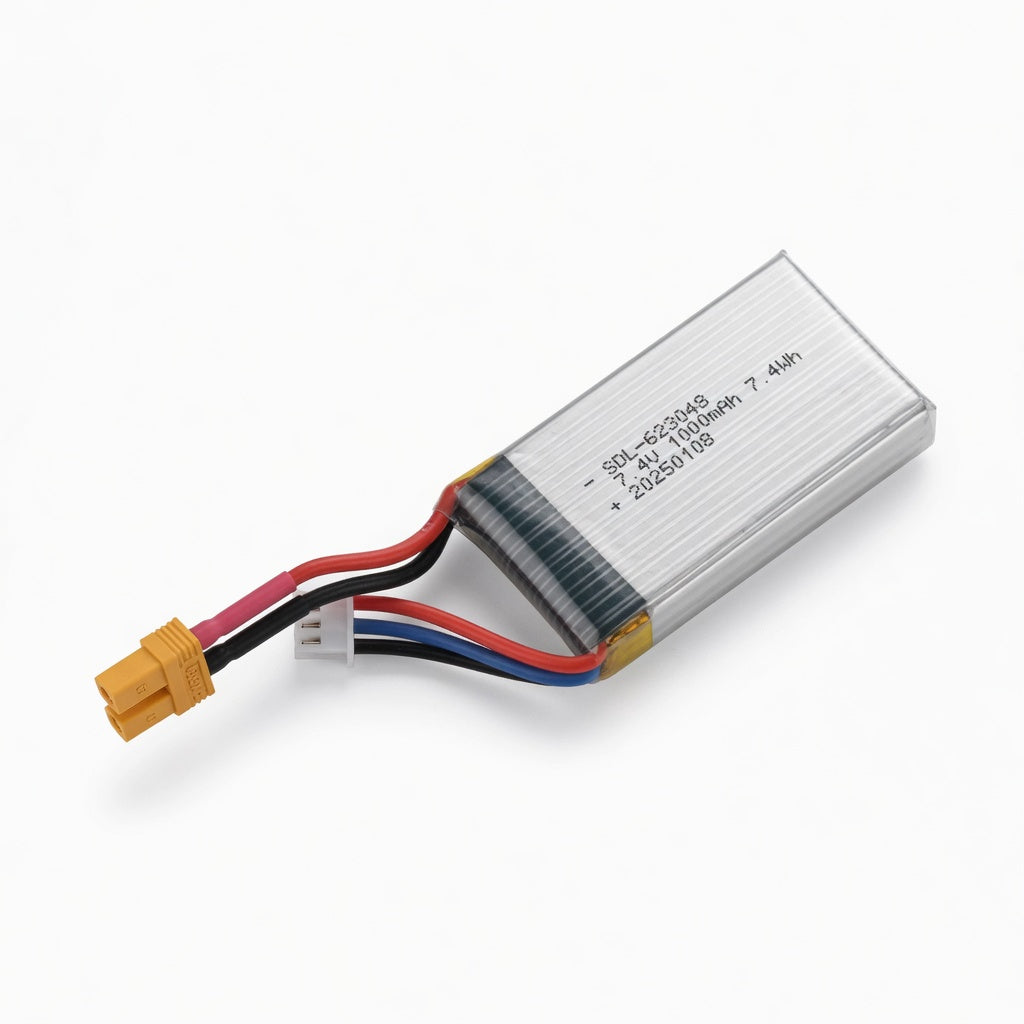

7.4V 1000mAh LiPo Battery with XT30 Plug for QiDi 570 VTOL Brushless RC Plane

Maximum Flight Time for Your VTOL Missions

Running out of power mid-hover can cut your QiDi 570 VTOL missions short and risk unstable landings in Crane Mode. Standard batteries often lack the sustained discharge rate required for high-torque brushless motors and LED lighting systems. This premium 7.4V 1000mAh LiPo battery is engineered to solve these power gaps, providing reliable, high-density energy to ensure your aircraft maintains peak performance from takeoff to landing. Ships worldwide.

Product Highlights

• Extended 1000mAh Capacity: Offers a high energy density ($7.4\text{Wh}$) to maximize your time in the air, especially during power-hungry Crane Mode operations.

• Genuine XT30 Interface: Features a gold-plated XT30U-M connector for low-resistance power delivery and a secure, vibration-proof connection.

• Dedicated Balance Charging: Equipped with a standard 3-pin balance lead (XH-2.54) for safe, precise cell balancing and long-term battery health.

• Stable 7.4V Output: Optimized for the QiDi 570’s brushless ESC system, ensuring consistent voltage for both the propulsion motors and integrated LED lights.

Compatibility

For the QIDI 570 VTOL RC Plane only.
Full model page (specs & photos):

https://www.kidstoylover.com/products/qidi-570-vtol-rc-plane-brushless

What’s in the Box

• 1 x  7.4V 1000mAh LiPo Battery with XT30 Plug

Install Tips

• XT30 Connection: Align the polarized "D" shape of the XT30 connector with the aircraft's power lead to ensure correct polarity before firmly pressing them together.

• Balance Port Usage: Use only a dedicated 2S LiPo balance charger via the white 3-pin lead; never charge the battery through the XT30 main power lead alone.

• Compartment Placement: Secure the battery inside the QiDi 570's fuselage using the internal straps to maintain a stable Center of Gravity (CG) for optimal VTOL stability.

• Storage Maintenance: If the plane will not be used for more than 48 hours, discharge or charge the battery to a storage voltage of approximately $3.8\text{V}$ per cell ($7.6\text{V}$ total).

Support & Warranty

• 3-month warranty on manufacturing defects
• Ships worldwide
