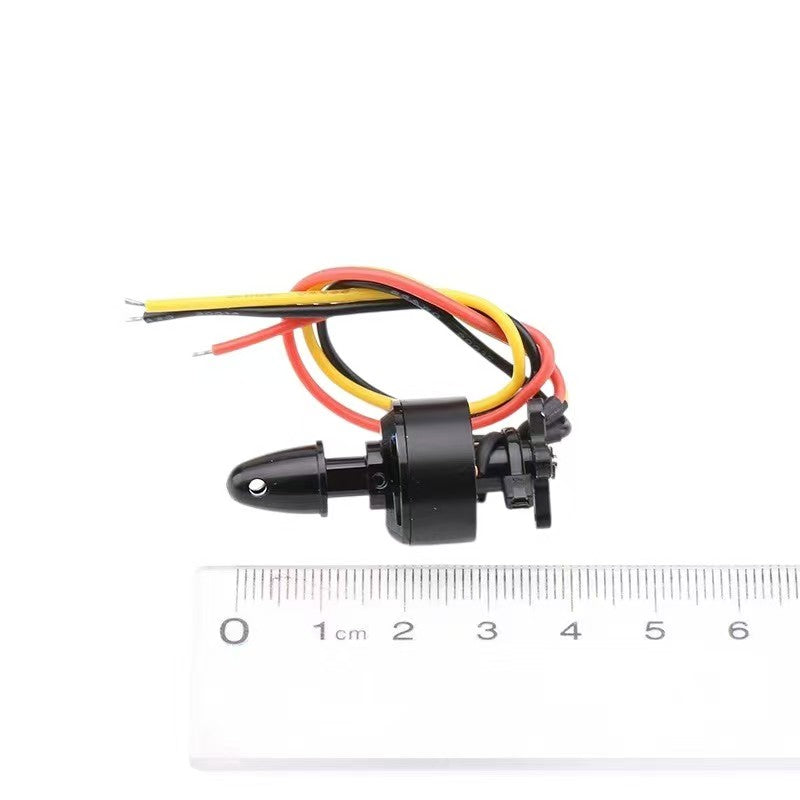

WLtoys XK X450 Front CW Motor Clockwise Brushless Engine for VTOL RC Plane

Restore Vertical Hover Thrust, Fix Motor Stutter, and Prevent Asymmetric Flight Drift

A burnt out, stuttering, or bearing-damaged front clockwise (CW) motor on your WLtoys XK X450 Brushless VTOL Aircraft causes immediate power loss, severe yaw drifting, and failure during vertical takeoff or high-speed horizontal transitions. Hard crashes, grass entanglements, or dirt intrusion into the motor magnets can lock up the rotor, overheat internal windings, and damage the brushless coils. Installing generic, uncalibrated brushless motors with incorrect KV ratings leads to uneven thrust distribution between left and right nacelles, confusing the 6-axis flight gyro. This official WLtoys XK X450 Front CW Motor delivers an exact factory replacement. Engineered with high-RPM KV calibration and clockwise winding direction, it restores balanced lift, smooth motor spooling, and rock-solid flight stability.

Compatibility

• Model: WLtoys XK X450 (VTOL RC airplane)

• Main product link: WLtoys XK X450 2.4G 6CH 3D/6G Brushless VTOL

What’s in the Box

• 1× WLtoys XK X450 Front CW Motor

More Spare Parts & Accessories

Find exact-fit props, wheels, servos and more in the dedicated parts collection:

https://www.kidstoylover.com/collections/wltoys-xk-x450-6ch-brushless-airplane-spare-parts

Key Features

• Factory Matched KV Rating & CW Rotation: Specifically wound for Clockwise (CW) rotation to perfectly balance motor torque with the counter-rotating motor on the opposite tilt pod.

• Precision Sealed Bearings & Balanced Bell: Operates with minimal rotational friction and vibration, protecting internal ESCs and delivering smooth throttle response.

• High-Temperature Copper Windings: Built to withstand sustained high-current draw during vertical hovers and demanding 3D aerobatic maneuvers without overheating.

• Plug-and-Play Bullet Connectors: Comes pre-soldered with factory bullet plugs for quick, solder-free connection to the front ESC harness.

Installation Tips

• Removing Damaged Front Motor: Unscrew the motor housing on the front tilt pod, carefully loosen the motor retaining bolts, and disconnect the three bullet leads from the ESC.

• Mounting Replacement CW Motor: Position the WLtoys XK X450 Front CW Motor onto the tilt pod base, secure the mounting bolts with threadlock, and attach the propeller adapter.

• Connecting ESC Bullet Plugs: Connect the three motor wires into the front ESC output leads; if the motor spins in reverse during test, swap any two bullet lead connections.

• Pre-Flight Spin & Rotation Check: Power on the aircraft, advance throttle at low speed, and verify that the front CW motor rotates clockwise smoothly without friction before launch.
